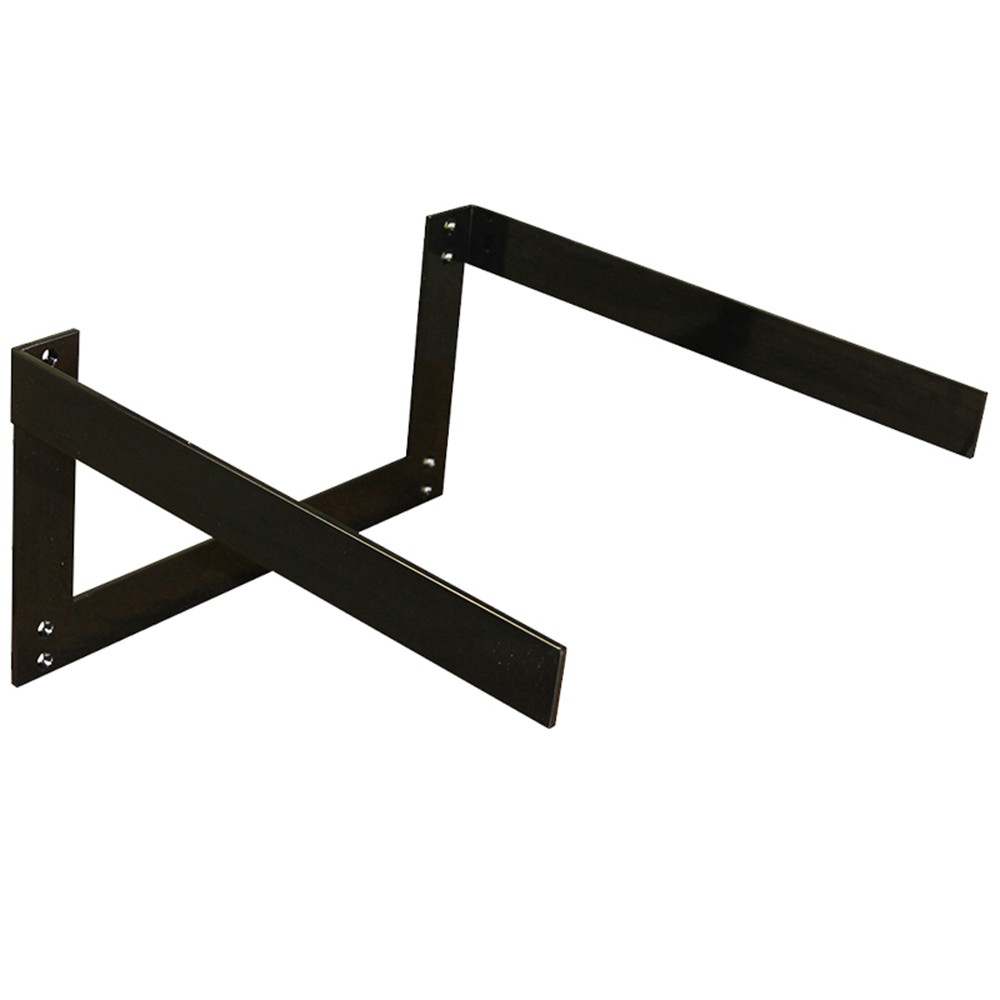

The Sento Floating Vanity Support Bracket by Federal Brace provides balance and support strength with very little visibility. The formed fabrication process gives the Sento floating vanity support the strength to hold both base cabinets and countertops. The supporting arms are 18" long to support a 22" deep cabinet or countertop. Installation can be hidden behind wall material or through the cabinet base for a wall hung vanity.
Vanity Supports will comply with the Americans with Disabilities Act (ADA) when installed per the requirements of the Accessibility Guidelines, Section 606 Sinks, of the Act.
Federal Brace recommends using a vanity support that extends within 4" of the front edge of the vanity. Excessive overhang may cause significant force in a point load situation. Maximum load carrying capacity on vanity support brackets is 200 lbs. with 1/32 deflection.
The Sento Floating Vanity Support should be tied into
the stud wall. It can be hidden inside the cabinet or behind the
fascia of the wall with only the support arms extending under
the vanity for support. If no cabinet is used, the counter can be
secured to the arm extensions with silicone.
